Valmont Facades primarily manufactures perforated panels in aluminum, with additional options including Corten steel, carbon steel, zinc, copper, and brass.

Aluminum provides excellent durability, corrosion resistance, and design flexibility for exterior architectural applications.

Typical aluminum thicknesses range from 3–6 mm. Thicknesses for other metals vary by material and application.

Yes. Many materials are recyclable and support long-term, low‑maintenance building designs. See our Suitability page for ESG reporting, LEED support, and EPD documentation.

Yes. Materials are selected based on environmental exposure, corrosion resistance, and performance requirements.

No. Formal certification or installer training is not required.

Qualified subcontractors such as sheet metal, glazing, and building envelope contractors.

Yes. Contractors familiar with ACM or similar façade systems are well equipped to install Valmont Facades products.

Yes. Installation guidelines and technical support are available throughout the project.

Yes. Products must be installed in accordance with Valmont Facades requirements. Refer to warranty documentation for full details.

Valmont Facades typically begins with 4‑ or 5‑ft‑wide coils, providing designers broad flexibility in panel folds, dimensions, and fabrication.

Yes, subject to engineering and fabrication considerations.

Wind load, thermal movement, shipping limitations, and installation method.

Yes. Tolerances vary by material, panel size, and pattern.

Yes. Larger panels may require increased thickness to meet wind-load criteria, which can affect cost. We typically recommend a maximum panel length of 14 ft, though longer panels may be achievable depending on location and engineering requirements.

Yes. Early collaboration is encouraged.

-Developing attachment and system details -Evaluating materials, finishes, and fabrication methods -Establishing realistic budgets and schedules -Improving constructability and installation efficiency -Identifying opportunities to simplify or enhance the design

Panel layouts, joint spacing, and perforation pattern development.

Architects, designers, engineers, and façade consultants.

Due to proprietary attachment methods, CAD files are not generally issued. Please consult your local representative for project‑specific guidance.

Yes. Valmont frequently provides value engineering while maintaining overall design intent.

Pricing is based on material, finish, panel size, pattern complexity, and volume.

Yes, during early design stages.

Once project scope and details are finalized.

Yes. Standard materials and finishes typically offer better value.

They may, depending on pattern complexity and manufacturing method.

Yes. Guide specifications and technical documentation are available. See the Resources tab for more information.

Typically under Division 05 or related façade sections.

Yes, upon request.

Yes. Submittal coordination is common during procurement.

Yes, as required during design and review.

Powder coating is Valmont Facades’ preferred finish. Anodizing, liquid coating, galvanizing, Corten, and other specialty finishes are also available.

Interpon coatings offer exceptional durability, color retention, finish options, and warranty coverage. -Interpon D2525 (AAMA 2604): 25‑year global warranty -Interpon D3020 (AAMA 2605): 30‑year global warranty

Yes. Please consult your local representative.

Yes. All finishes are evaluated for exterior performance.

Yes, throughout production and across panel runs.

No. Minimal maintenance is typically required.

Minimums vary, but Valmont Facades typically does not pursue projects under 2,000 sq ft.

Yes, including major infrastructure and multi‑building developments such as LAX ConRAC and the Sacramento Airport Parking Garage.

It may result in production efficiencies.

Yes. Panels can be packed and shipped by elevation, sequence, or contractor preference.

Yes, depending on project scale and scheduling.

Yes. Valmont engineers each project back to the primary structure, including embeds, anchors, and attachment methods.

Yes. Valmont is licensed in all 50 U.S. states.

Wind load, seismic conditions, and thermal movement.

Yes. All system components are engineered for compatibility and performance.

Yes, including experience with DSA and OSHPD requirements in California.

Lead times vary based on material, finish, customization, and project size. Overall project timelines typically average ~26 weeks, with some overlap between phases.

Expedited options, including air freight, may be available.

After final scope, approvals, and engineering coordination.

Yes.

Yes, as part of overall project planning.

Yes, including material, finish, and perforation samples.

Typical pattern samples are 12" × 12". Larger samples may be produced upon request.

Stock samples usually ship within the same week. Custom samples typically require 4–6 weeks.

Yes. Full‑size mockups are also available—contact your representative for pricing.

Yes.

Yes. Valmont offers a large pattern catalog and collaborates on fully custom designs, subject to fabrication review.

Yes. Open area impacts structural capacity, panel thickness, transparency, and daylighting. Pattern modeling services are available to assist decision‑making.

Yes. This occurs early during design‑assist phases.

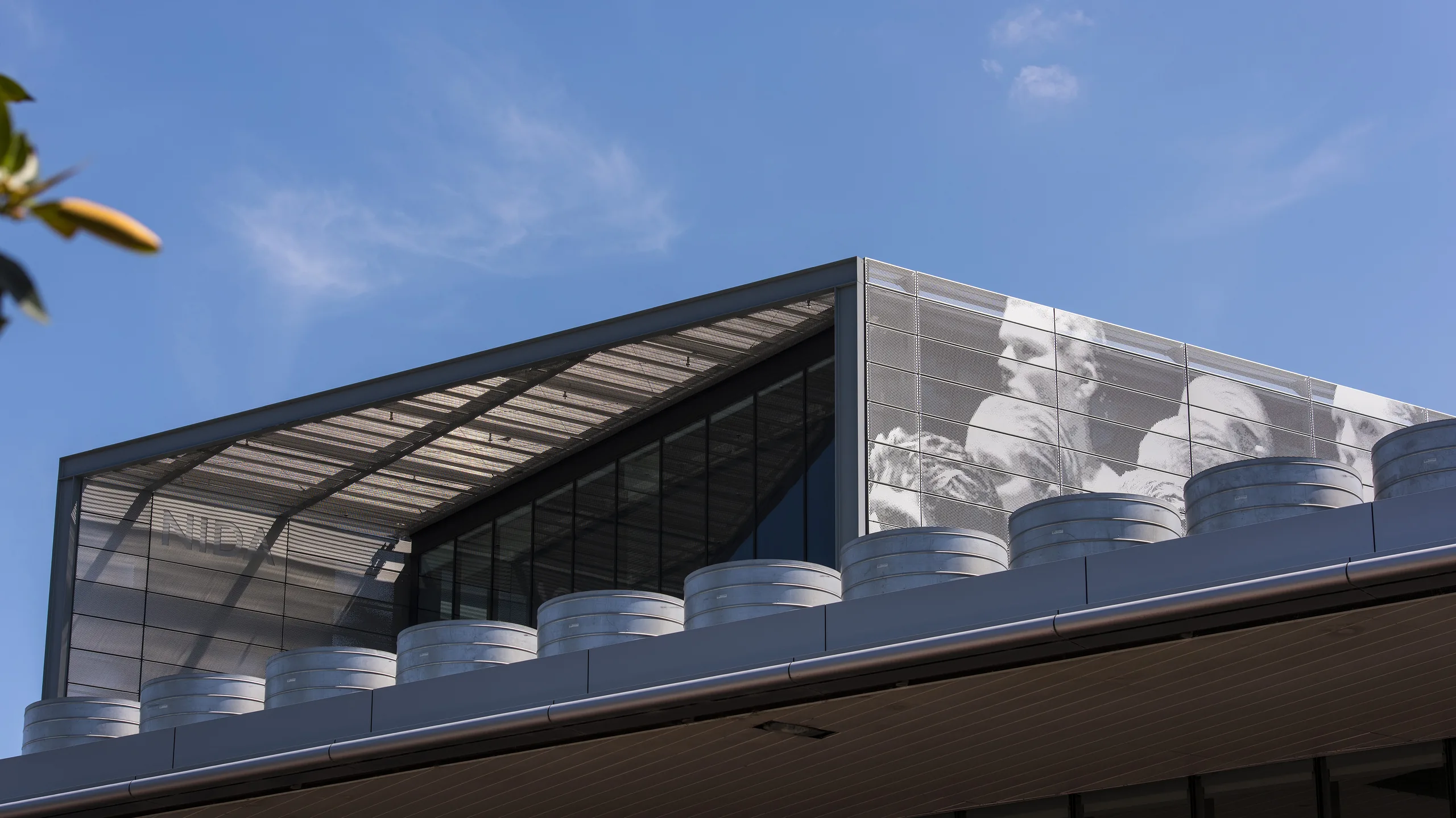

Yes. Patterns can repeat per panel or flow continuously across elevations. See PicPerf® projects for examples.
